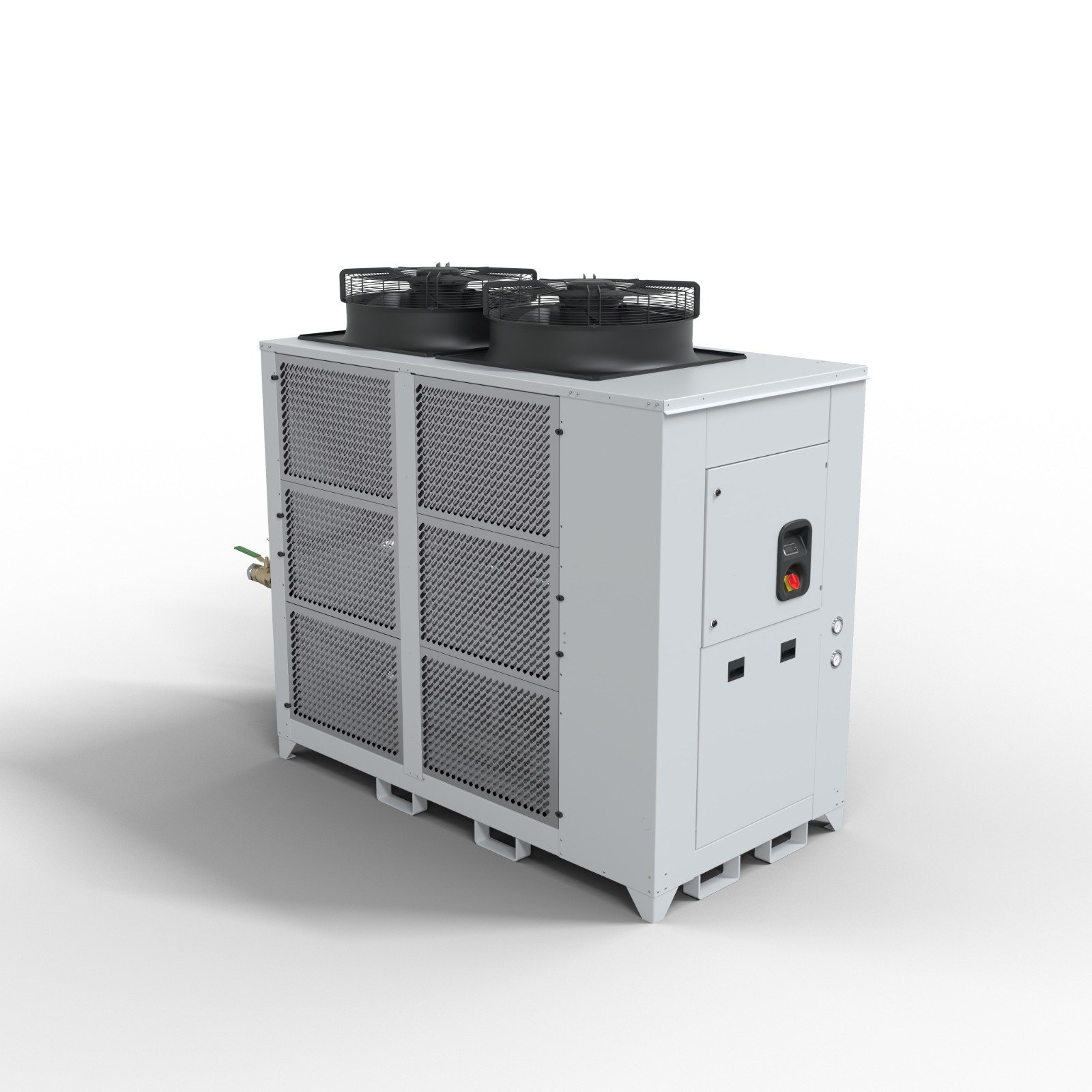

50KW Chiller
This is the pinnacle of our efficiency range in air condensed liquid chillers and heat pumps.
This uses a combination of Scroll ON/OFF compressors and modulating BLDC (Brushless DC-inverter) compressors. The flexibility of this range and its highly versatile design, make it suitable for a wide range of system applications
- The compressors are driven by the load responsive inverters changing frequency to quickly reach the desired set-point.
- The software calculates the point of highest machine efficiency to minimise running costs. This function is particularly effective in the FreeCooling setting.
- Electronically controlled expansion valve supplied as standard.
- Available to hire, buy and lease
Here at Rapid Chiller Rentals Limited, emergency chiller hire is what we do. Providing both temporary commercial & industrial process chillers, from 10 kW to 1000 kW and beyond. Contact one of our rental experts today to get your quotation
Why Hire the 50KW Chiller?
Perhaps a chiller breakdown emergency? Or do you just need extra cooling to support a compressor failure during repairs to equipment you already have on site?
Another reason could be your chillers are getting older and just aren’t coping with the cooling load during high summer temperatures.
You will find what you need here!
We’re privately owned and independent so can source from more places, ensuring what you want, when you want, at a competitive rate! Rapid Chillers pride ourselves on delivering a complete temporary chiller hire service to our customers and contractors, and our motto of “Quality, Safety & Passion” ensures customers keep coming back to us.
Our sales & cooling engineers are experts at providing the right advice fast. What you need, when you need it, at a price you can afford.
Products supplied may differ from those pictured above, however each chiller supplied will be able to provide the same or superior cooling duty.
Our packaged rental chillers offer the latest in low carbon efficiency, fitted with Scroll compressors that improve volumetric efficiency and flow continuity, they help reduce noise and leakage that protect you from downtime. The axial fan motors move in a parallel direction to the rotation axis allowing large volumes of air to be drawn through the coils. The braised heat exchanger fitted allows for better heat transfer and a smaller footprint, the overall weight of the machine is also greatly reduced as a result. The fact a heat exchanger can handle an equally high flow rate and system pressure means a long-life expectancy is just as likely and the heat exchanger means there is a reduction in the amount of refrigerant required to provide the cooling. Lastly the chillers sleek design is aesthetic also with tasteful colours and branding, a small addition to showcase the care taken on the details.
| Specification | Unit | Value |
|---|---|---|
| Model | — | RCAC 50 |
| Cooling Capacity | kcal/h / kW | 32,500 kcal/h / 49.8 kW |
| Heating Capacity | — | n/a |
| Rated Current | — | 400V / 3 Phase / 50Hz |
| Input Power | kW | 11.8 |
| Absorbed Power | Amps | 18.39 |
| Number of Fans | — | 2 |
| Water Flow | m³/h | 10.1 |
| Integral Pump | — | Yes |
| Expansion Tank | — | 8 Ltr |
| Water Tank Volume | Ltr | 165 |
| Dimensions (H × W × L) | mm | 1763 × 887 × 1719 |
| Compressor Type | — | Hermetic / Scroll |
| Refrigerant Type | — | R410A |
| Water Connections | Rp | 1 1/2″ |
| Operation Temperature | °C | 18 – 45 |
| Ambient Temperature | °C | n/a |
3 Simple Steps to Easy Installation
Our commercial and domestic experts offer a more efficient alternative to heating your property. Here is the simple and easy process of Installation:
1
1
Step 1: Contact Us
Contact us via phone, email, or through our website and communicate your interest in installing the Chiller model.
2
2
Step 2: Site Survey
We will arrange a survey, assess the layout, identify the installation location, and determine the placement of components.
3
3
Step 3: Installtion
